Lucide RECESSED WALL DIMMER NL - Dimmer - 300 Watt 230V - White

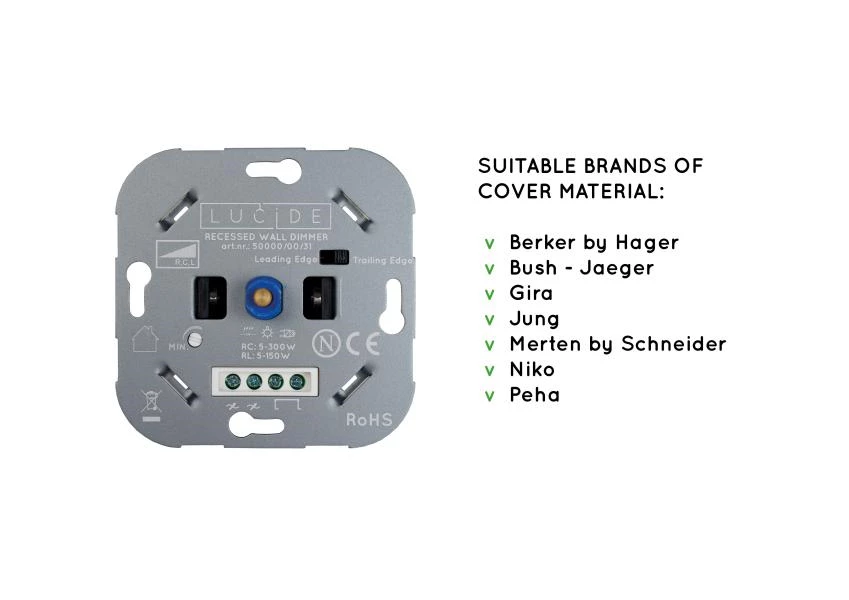

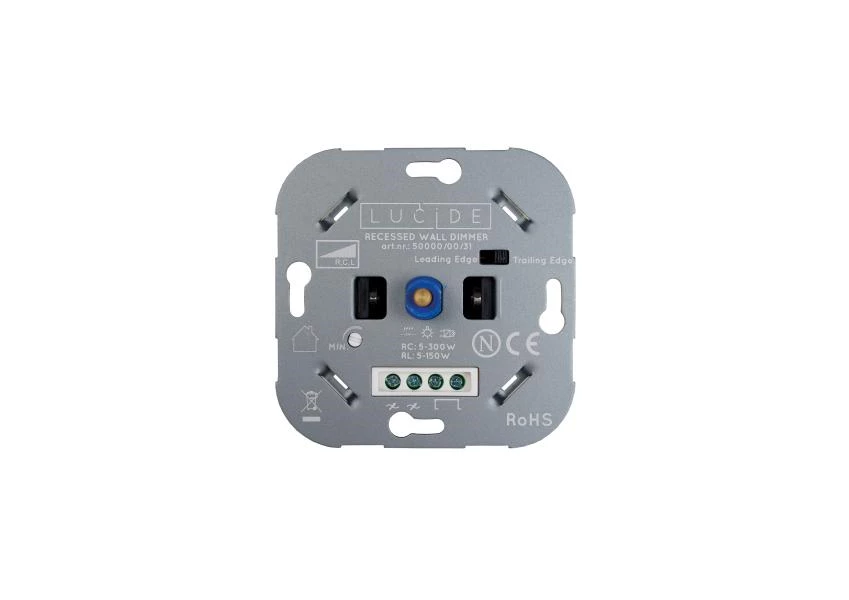

You made the decision: you have purchased some fantastic spotlights, ceiling lights and – as the cherry on top – even a wonderful pendant light for over the dinner table. Eco-friendly as you are, all the armatures are highly energy-efficient and fitted with an LED light. You are proud of the outcome. As a finishing touch, you would like to be able to dim the armatures. This creates a challenge: which dimmer is suited for which LED light? Lucide lighting provides the perfect solution. We have developed a universal LED dimmer that functions on our armatures and light sources, as well as 90% of the market-available LED lights by other brands. Each type of LED light 12V or 230V requires a different control system. The Lucide LED dimmer is equipped with a switch mechanism that allows you to set the dimmer to either Leading edge (RL 5-150W) or Trailing edge (RC 5-300W) regulated LED lights. The built-in screw lets you very easily set the minimum and maximum dim range. In addition, the Lucide LED dimmer standard comes with a sleek and stylish cover frame in the colour white (RAL9010). If you would like to select your own cover frame, you can pick from most known brands on the market. This includes Berker - Busch-Jaeger – Gira – Jung - Merten by Schneider - Niko and Peha. (Busch-Jaeger and Niko requires an adapter which is included with the dimmer) Lucide’s Tip Create a test setup first. Flickering or zooming of the lights, transformer and/or dimmer indicates a bad match. Please test this without screwing the dimmer onto the wall. Always keep your eye on the minimum and maximum load of the dimmer (see max Wattage RC/RL) Please carefully check your wall socket. The Lucide LED is only compatible with regular receptacles with threaded holes. No separate receptacle clips are included, making the dimmer incompatible with receptacles without threaded holes.
General

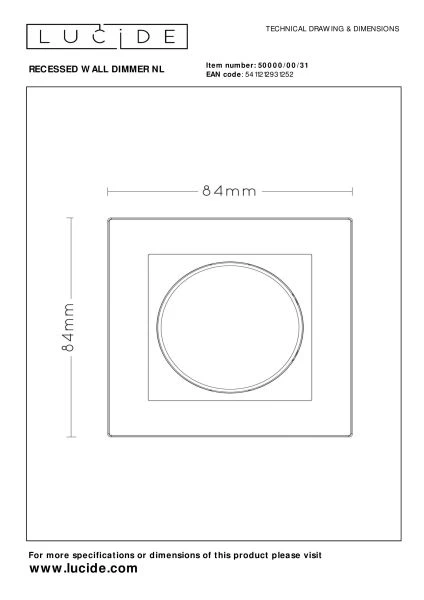

- Dimensions lxwxh
- 7.6 cm x 7.6 cm x 5.1 cm
- Height minimum
- 5.1 cm
- Height maximum
- 5.1 cm
- Main material
- Synthetic Material
- Mounting diameter
- 0.01 cm
- Mounting depth
- 0.01 cm
- Color
- White
- Shape
- Square
- Weight
- 0.09 kg
Product specifications
- Dimmable
- No
- IP-Class
- 20
- Electric class
- 1
Content and composition of this article
- Consumer unit (Number)
- 1
- Including installation materials
- Yes
Product information
- Product group
- Dimmers
- Usage
- Indoor
- Name
- RECESSED WALL DIMMER NL
- EAN
- 5411212931252
- SKU
- 50000/00/31
- Warranty
- 3 Years
Bulb 1 specifications
- Light source including
- No
- Light source dimmable
- No
- Light source type
- Without Bulb
- Voltage
- 230 V
- Energy label
- -
![](/Uploads/img/black logo.jpg)
Article number 50000/00/31
